MEET

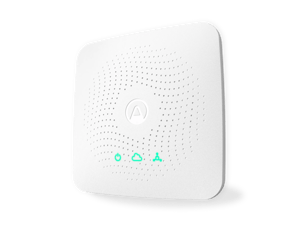

Space Hub

The glue that connects all Airthings
for Business monitors to the cloud.

hub-1

Wireless IAQ insights
that scales.

Professional air quality monitoring designed
for commercial portfolios where speed
and battery life are paramount
Airthings Space Pro - Lifestyle Classroom_PM_CO2_WEB

Product features

Over the cloud
Remote access

Remote access to all Airthings for Business sensors

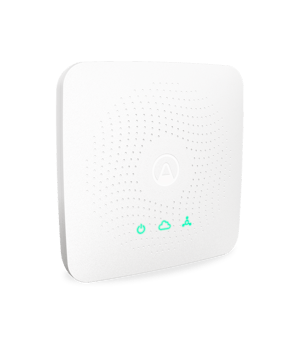

hub features
desktop-1
Access

Access to Airthings Business Dashboard and REST API

cell-signal-high
Connection

Long-range wireless connection with Airthings SmartLink

cloud-arrow-up
Live data

Live data streaming to the cloud

hand-pointing
Easy installation

Mounting options: freestanding or mounted

circles-three
LED status

LED status indicators: power, cloud and device connection

More sensors. More insights.

CO2
Carbon Dioxide (CO₂)



PM
Particulate matter (PM 1)
PM
Particulate matter (PM 2.5)
VOC
Volatile organic compounds

Temperature
Temperature
Humidity-1
Humidity
Pressure
Pressure
Light
Light
Noise
Noise
virus risk
Virus risk

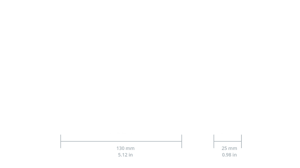

hub technical (1)

Connection

Space Hub

Always-on remote access with Space Hub which uses a proprietary, long-range, ultra-low-power connection. Can operate with ethernet or cellular connection.

Weight

360g (with batteries, without cable)

Dimensions

17 cm (length) x 9 cm (width) x 3.3 cm (height)

Power

6 AA batteries or USB-C

Connectivity

Airthings SmartLink & Bluetooth Low Energy

Privacy

Noise Indicator used for measuring sound pressure level only, no privacy concerns

Specifications

Operational Environment

4°C to 40°C

Weight Space Hub

258g

Dimensions

<125 x 125 x 25 mm

Power supply

100 - 240 V AC / 50-60Hz

Protocols: Airthings Smartlink

Long range (>1km line of sight) and low power
Supports 865-870MHz and 902-928MHz
Based on IEEE 802.15.4g with FSS, 50kbps



Frequency Band

868/915MHz

Additional information

What's in the box

Airthings Hub

Ethernet Cable

Instruction Manual

Mounting bracket

Rubber bumper pads

Double-sided tape (wall mount)

Power supply adaptor

US interchangeable supply blade

EU interchangeable supply blade

UK supply blade is separate product

Requirements

Space Hub, Model 2820 Cellular connection and Ethernet connection

Package

Dimensions: 158x158x79mm

Space Hub, Model 2820 Weight: 545 g
