MEET

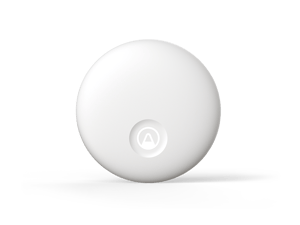

Space CO₂ Mini

Wireless monitor for CO₂, temperature, light (lux), noise, and virus risk.

Get in touch
Tech specs
c02 mini

Wireless IAQ insights
that scales.

Wireless monitor for CO₂, temperature, light (lux), noise, and virus risk. Sold in 4-packs to help cover more spaces in your building
Airthings for Business - Space CO2 Mini - Lifestyle - School 01_WEB (1)

Product features

cloud-check
Over the cloud updates

Constant improvements and new upgrades delivered automatically to your device

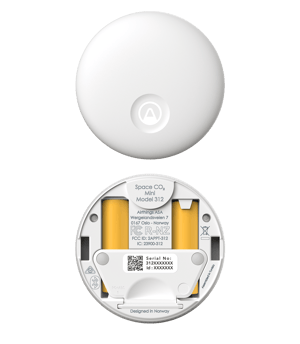

c02 mini features
dots-six
Six sensors

CO2, Temperature, Relative Humidity, Pressure, Noise, Light (lux)

battery-full-1
10 years battery life

Turn off noise or set office hours (i.e 7AM-5PM Mon-Fri) to get more than 10 years battery lifetime

plugs
Plug and play

Simple, tool-free installation allows for rapid deployment across your entire portfolio

circles-four
Sold in 4-pack

Helps cover more spaces in your building, ensuring optimal ventilation and energy usage

gps-fix
Long range connectivity

Connects via the cellular-powered Space Hub, eliminating the need for stable Wi-Fi connection

More sensors. More insights.

CO2
Carbon Dioxide (CO₂)



Humidity-1
Humidity
Temperature
Temperature
Pressure-1
Pressure
Light
Light
Noise
Noise
users (1)
Occupany
virus risk
Virus risk
mini technical

Technical specifications

Recommended operating conditions

Temperature 0 to 45°C / 32 to 113°F

Humidity 5% to 85% (non condensing)

Weight

~2.9 oz (~84 g) with batteries

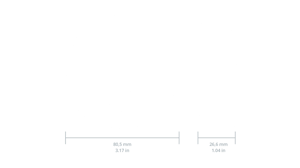

Dimensions

3. 17 x 3. 17 x 1. 04 in
(80.5 x 80.5 x 26.6 mm)

Frequency band

865-870 / 902-928 MHz depending on the region

Power

2 x Lithium AA batteries

Connectivity

Airthings SmartLink & Bluetooth Low Energy

Noise Indicator samples ambient sound less than 1% duty cycle and measures sound pressure level only, no privacy concern.

Firmware updates are automatically downloaded and installed over the air (OTA) via the Space Hub

IAQ sensor specifications

Sensor sampling interval

5 min default and 2.5 min optional. Office hours set on building level: Outside office hours +1 hour before and after, noise sensor is turned off and CO2  interval is set to hourly. In addition, humidity, pressure, and light are reduced to 5 min interval regardless of sensor sampling interval setting.

Temperature / Humidity

Temperature Accuracy: ± 0.2℃ /± 0.4 F

Humidity Accuracy: ± 2.0 % RH

Pressure sensor

Absolute pressure accuracy: ± 30 Pa

Unit-to-unit pressure accuracy: ± 30 Pa



CO₂ sensor

NDIR Sensor (Non-Dispersive Infra-Red): Measurement range 400 – 5000 ppm Accuracy ±50 ppm ±5% within 10 – 35 °C / 50 - 95 °F and 0 – 80%RH, after initial calibration time of 7 days. Self-calibrated using an automatic baseline algorithm that updates once a week.


Light sensor

Light sensor is measured in received luminous flux per unit area, also known as Lux.




Noise sensor

Ambient sound is sampled at 1% duty cycle and presented as sound pressure level in dB (adjusted to human ear hearing profile - A-weighted, dBA).

Virus sensor

Virus Risk, Occupancy. Please consult web dashboard for latest.




Additional information

What's in the box

Space CO2 Mini

2 x Lithium AA batteries

Double-sided tape

Battery lid with theft protection

Package

Dimension: 7.9 x 4.5 x 2.4 in (200 x 115 x 60 mm)



Product codes

EU, India, and United Arabic Emirates (UAE) 311xxxxxxx - serial number

4-pack EU/UAE SKU 13110, EAN 709003110 0117 UPC NA *

North America and ROW 312xxxxxxx - serial number

4-pack North America SKU 13120, EAN 709003110 0124 UPC 854232008552*



Regulatory information and recycling guide


Check out our regulatory information an recycling guides that explain how to responsibly dispose of your Space CO2 Mini monitors.

Model 311

Model 312

* Both SKU 13110 and 13120 will be replaced with new common SKUs that cover all countries/regions to be supported by models 311 and 312 respectively
